Description
Product details

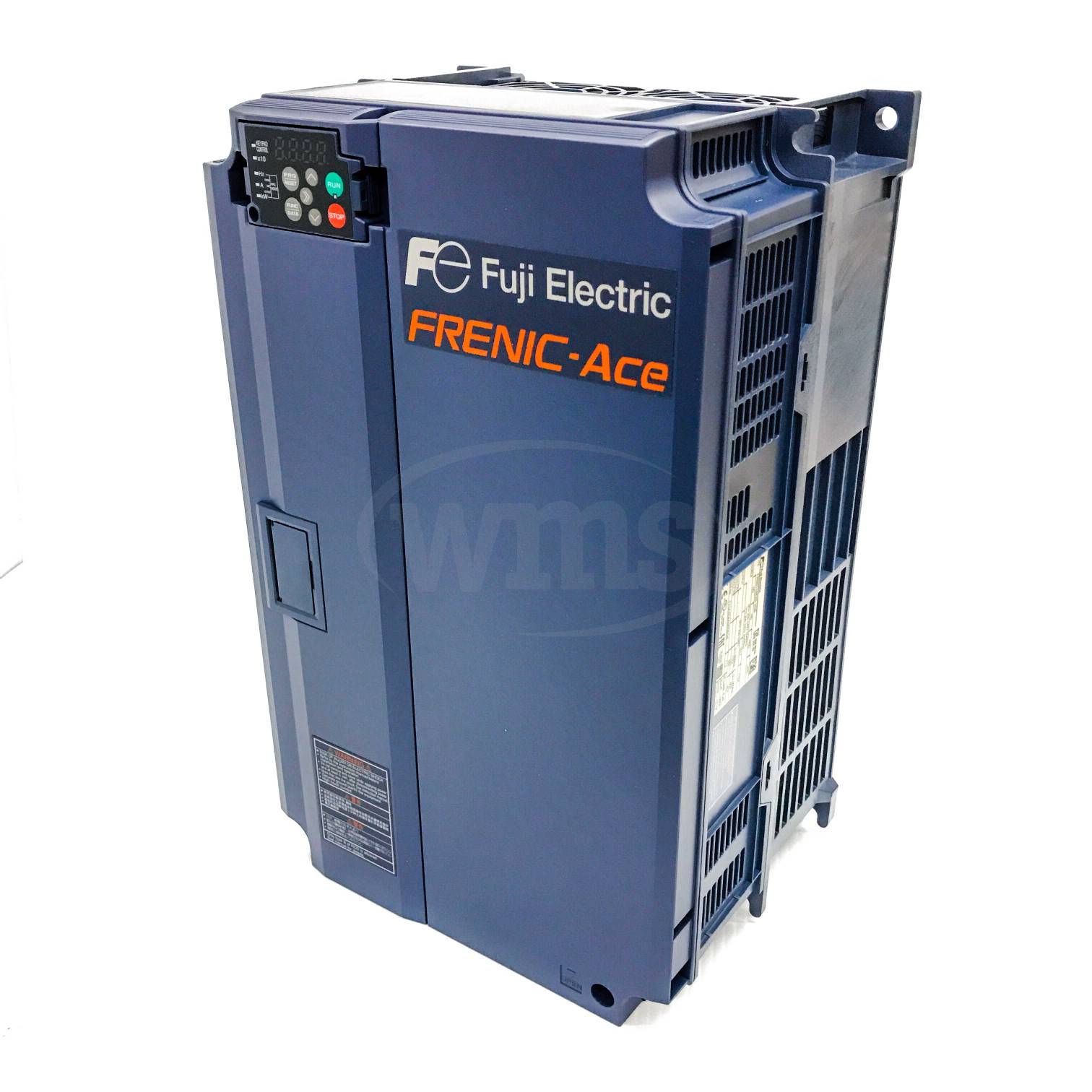

BrandFuji ElectricModelFRN0168E2S-4GBNominal Motor HP [kW]125 HP [ kW] (ND) 100 HP [ kW] (HD & HND) 75 HP [ kW] (HHD)Rated Output Capacity kVA134 kVA (ND) 120 kVA (HD & HND) 89 kVA (HHD)Rated Output Voltage3 Phase, 380-480 Volt (with AVR)Rated Output Current168 Amps (HD) 150 Amps (HD & HND) 112 Amps (HHD)Rated Overload Capability120 % of nominal current for 1 minute (ND & HND) 150 % of nominal current for 1 minute (HD) 150 % of nominal current for 1 minute or 200% of nominal current for 0.5 seconds (HHD)Main Power Supply Input3 Phase, 380 to 480 Volt, 50/60 Hz (With AVR)Voltage / Frequency VariationsVoltage: +10 % to -15% Voltage Unbalance: 2% or less Frequency: +5% to -5%Rated Current Input without DC Reactor [with DC Reactor][164 Amps] (ND) [138 Amps] (HD & HND) 140 Amps [102 Amps] (HHD)Required Power Supply Capacity131 kVA (ND) 110 kVA (HD & HND) 81 kVA(HHD)Braking Torque5 to 9% (ND) 7 to 12% (HD & HND) 10 to 15% (HHD)DC BrakingStarting frequency: 0.0 to 60.0 Hz Braking Time: 0.0 to 30.0 Seconds Braking Level: 0 to 60 % (ND),0 to 80 % (HD & HND), 0-100 % (HHD) of nominal currentBraking ChopperOptional/td
