Description
Product details

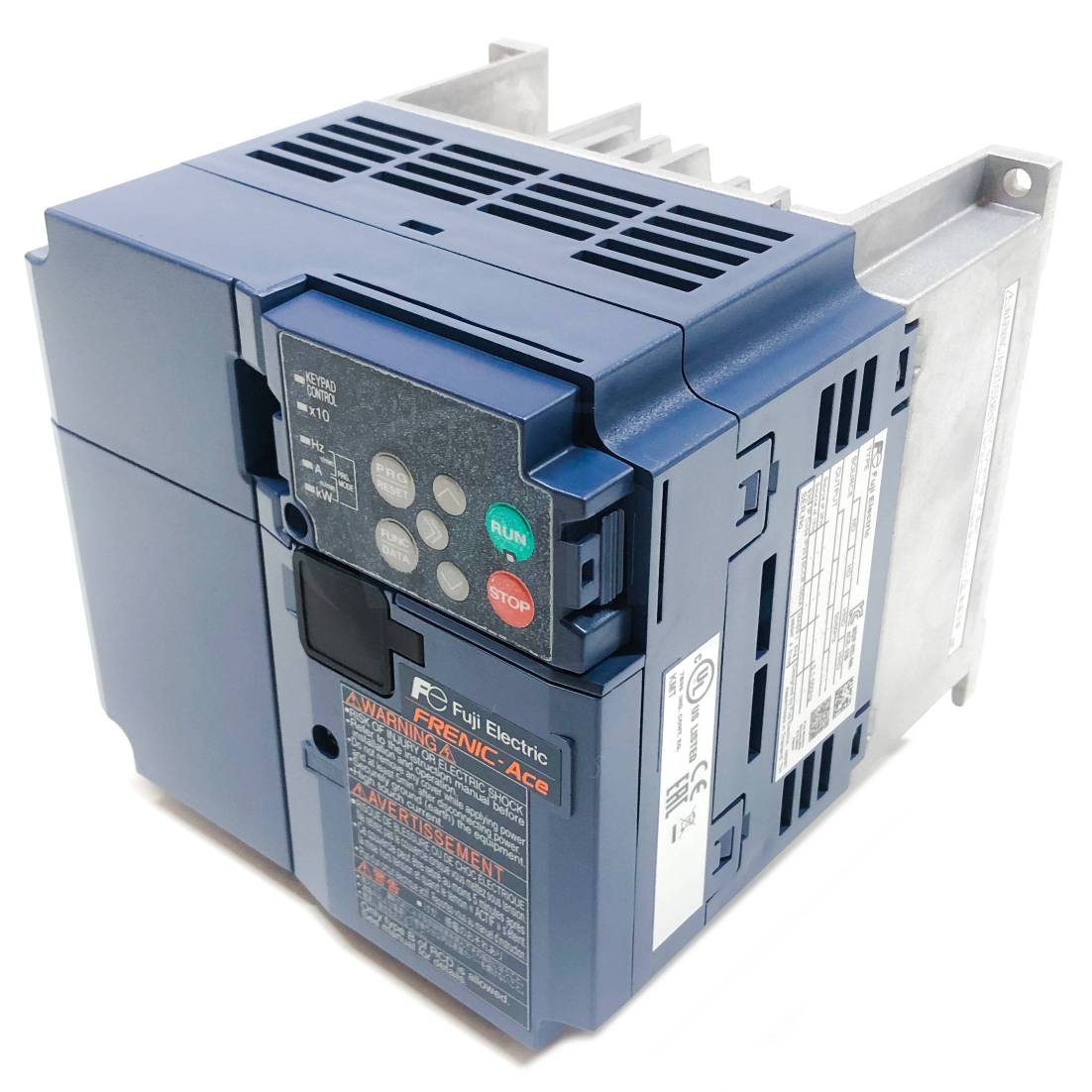

Nominal Motor HP [kW]7.5 Hp [5.5 kW] (ND & HD & HND) 5 Hp [3.7 kW] (HHD)Rated Output Capacity kVA9.1 kVA (ND) 8.5 kVA (HD & HND) 6.9 kVA (HHD)Rated Output Voltage3 Phase, 380-480 Volt (with AVR)Rated Output Current12 Amps (HD) 11.1 Amps (HD & HND) 9 Amps (HHD)Rated Overload Capability120 % of nominal current for 1 minute (ND & HND) 150 % of nominal current for 1 minute (HD) 150 % of nominal current for 1 minute or 200% of nominal current for 0.5 seconds (HHD)Main Power Supply Input3 Phase, 380 to 480 Volt, 50/60 Hz (With AVR)Voltage / Frequency VariationsVoltage: +10 % to -15% Voltage Unbalance: 2% or less Frequency: +5% to -5%Rated Current Input without DC Reactor [with DC Reactor]16.8 Amps [10.1 Amps] (ND & HD & HND) 13 Amps [7.3 Amps] (HHD)Required Power Supply Capacity7 kVA (ND & HD & HND) 5.1 kVA(HHD)Braking Torque27 % (ND & HD & HND) 40 % (HHD)DC BrakingStarting frequency: 0.0 to 60.0 Hz Braking Time: 0.0 to 30.0 Seconds Braking Level: 0 to 60 % (ND),0 to 80 % (HD & HND), 0-100 % (HHD) of nominal currentBraking ChopperBuilt-InBraking ResisterOptionalMinimum Connectable Resistance130 ?DC ReactorOptional, DCR4-5.5 (ND & HD & HND) Optional, DCR4-3.7 (HHD)CoolingFan CoolingOptional Din Rail MountRMA-E2-3.7EMC FilterOptionalDimensions5.51" x 5.51" x 5.63"
