Home Products POSITION SWITCH
Schmersal p/n: 10121
Schmersal p/n: 10121
COD not available

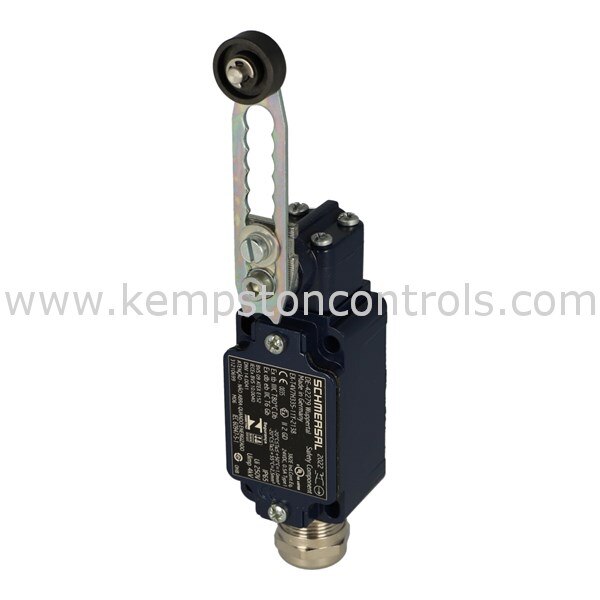

Schmersal POSITION SWITCH, 1NO+1N, SLOW ACTION, ADJ ROLLER LEVER, ATEX ZONE 1/21 by SCHMERSAL

POSITION SWITCH

Share with
Share this on :

Description

Product details

Schmersal p/n: 101212070, Type: EX-T4V7H335-11Y-2138 Ex-Zone 1 and 21 Metal enclosure Good resistance to oil and petroleum spirit 40,5 mm x 76 mm x 38 mm Actuator heads can be repositioned by 4 x 90° Mounting details to EN 50041 1 Cable entry M 20 x 1.5

Keywords

  • Filter tags

Other Products

Related Products

Schmersal EX-T4V7H 335-11Y-2138 POSITION SWITCH, PLASTIC ROLLER LEVER, W/SAFETY FUNCTION, 1NO/NC, SLOW ACTION, METAL BODY, 3XM20 ENTRIES, 24VDC, IP67
View Details
POSITION SWITCH
Our Schmersal SLC440COM is a series of Type 4 safety light curtains that are used to protect hazardous areas. Available in 14, 30 or 35mm resolutions and protection field heights between 330 and 1770mm. This part number includes a emitter, receiver and mounting hardware. This series has zero dead space which gives you a fully protected height for the entire length of the light curtain! Ideal for applications with space limitations or that need full length protection. This series is a one-piece extruded reinforced housing in a compact 28mm x 33mm rectangular profile. The SLC440COM is basically the SCL440 Type 4 safety light curtain without the 7 segment display and many of the integrated functions. The SLC440COM offers automatic and restart modes which gives you a cost-effective option! This series is suited for use in safety circuits up to PLe (EN 13849) or SIL3 (IEC 61508). Popular applications include: Power driven machines Power presses Brake presses Punching machines Robot cells Printing machines Palletizers Packing equipment Material handling
View Details
Safety Light Curtain
SCHMERSAL  AZM170-02ZRK-24VAC/DC Limit Switch, 2NC, 4 A at 230VAC/24VDC, 24 VAC/VDC Coil   Safety Interlock Switch with screw terminals for fast installation, 2NC contacts and IDC method of termination. The AZM170 series switch is designed for machines/work cells where access to a hazardous work area must be controlled until safe conditions exist. Their solenoid-latching feature permits locking a machine guard until dangerous conditions, which may exist immediately after removal of power, have abated. Solenoid-latching may be controlled by a time delay, motion detector, position sensor or other suitable component. The unit features independent actuator key (guard) position and solenoid-latching pin position contacts. These permit the prevention of machine restart until the guard is closed and the solenoid-latching pin is in the locked position. The AZM170 consists of an electromechanical safety interlock switch joined to a solenoid latching mechanism. Both the safety switch and solenoid mechanism feature positive break contacts. Compact design Highly tamper-resistant Two key entry locations Rugged, corrosion-resistant and high-impact GRP housing Built-in manual unlatching release Interlock with protection against incorrect locking High holding force
View Details
Limit Switch
